We are a leading company specializing in the business of manufacturing and supplying Electric Discharge Machines. These machines are used to remove material from a workpiece using thermal energy. We manufacture these machine using optimum quality materials and components. The machines can create complex shapes that would otherwise be difficult to produce with conventional cutting tools. Electric Discharge Machines can cut extremely hard, challenging and exotic materials to very close tolerances. The machines suit very small work pieces, where conventional cutting tools may damage the part from excess cutting tool pressure. Clients can avail our machines in different specifications as per their requirements.

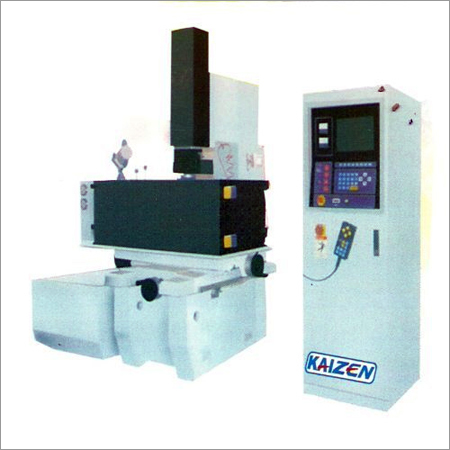

Electric Discharge Machines
Specifications:
Model |
ZNC 320 |
ZNC 450 |
ZNC 540 |
CNC 1370 N |
Size of Oil Container |
880 x 52 x 330 |
1130 x 750 x 450 |
1300 x 710 x 450 |
2250 x 1300 x 650 |
Table Size mm |
600 x 300 |
700 x 400 |
800 x 400 |
1400 x 900 |
Travel Longitude mm |
300 |
450 |
500 |
900 |
Travel Cross ward mm |
220 |
350 |
400 |
700 |
Travel Vertical mm |
180 |
200 |
200 |
500 |
